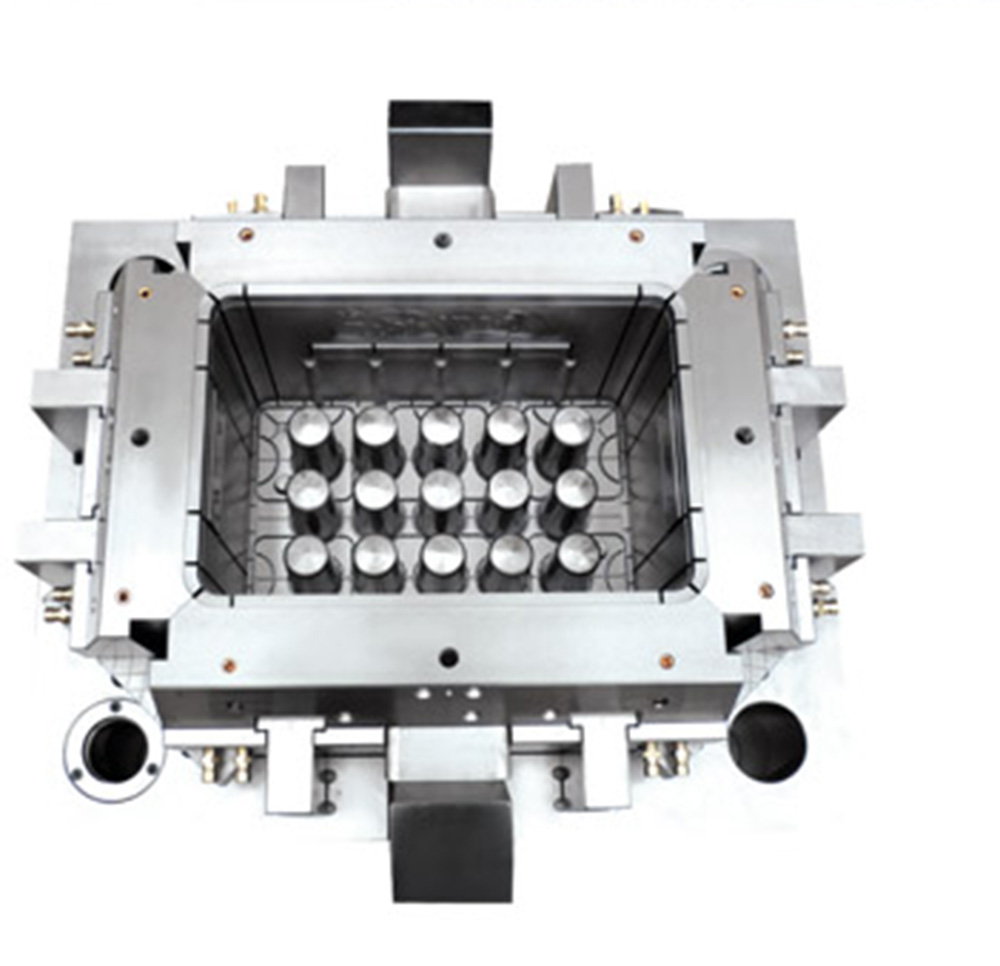

Case Study: Converting a Crate Mold from Virgin PP to 100% Recycled Material
Technical Engineering Case Study Published by ISMMOULD — Global Turnkey Solutions Authority for High-Performance Plastic Crate Molds, Pallet Molds, and Plastic Chair Molds
Executive Summary
In response to global sustainability mandates and rising virgin resin costs, a leading European agricultural logistics enterprise partnered with ISMMOULD to convert their flagship heavy-duty plastic crate production from virgin Polypropylene (PP) to 100% Post-Consumer Recycled (PCR) PP resin. The technical challenge was critical: transitioning to PCR PP typically results in a 25–35% drop in melt flow index (MFI) consistency, heightened risk of particulate contamination, severe wall warpage, and reduced top-load stacking strength.
Through comprehensive CAE Moldflow simulations, gate redesigns, and thermal cooling optimizations, ISMMOULD successfully re-engineered the injection tooling. The converted crate mold achieved 100% PCR resin compatibility while retaining a 900 kg static load capacity and maintaining the original 38-second cycle time.
Engineering Transformation Matrix: Virgin PP vs. 100% Recycled PP
The following technical matrix highlights the core challenges encountered during material conversion and the corresponding tooling solutions executed by ISMMOULD:
| Performance Parameter | Baseline (Virgin PP Raw Material) | ISMMOULD Re-Engineered Solution (100% Recycled PP) |
|---|---|---|
| Melt Flow Index (MFI) | Consistent 12 g/10min; stable fluid viscosity front. | Fluctuating 6–9 g/10min; mitigated via 4-drop Sequential Valve Gate (SVG) hot runners with dynamic pin timing. |
| Particulate Contamination | Zero inorganic debris or abrasive micro-particles. | In-line melt filter nozzles integrated to block debris > 0.4mm, preventing valve pin binding. |
| Cooling & Cycle Time | Uniform shrinkage with standard gun-drilled cooling; 38s cycle. | High-conductivity Beryllium Copper (BeCu) core inserts installed in deep corner ribs to maintain 38s cycle. |
| Venting & Outgassing | Standard perimeter gas venting along parting lines. | Multi-stage self-cleaning micro-vents (0.025mm) added along lattice rib intersections to prevent diesel burning. |
| Tool Steel Wear Resistance | Standard P20 core/cavity plates. | Upgraded to DIN 1.2738 pre-hardened steel with localized surface nitriding (52–55 HRC) to withstand abrasive regrind. |
Key Step-by-Step Tooling Modifications Executed by ISMMOULD
1. Moldflow Rheology Simulation & Windage Compensation
Because PCR PP exhibits anisotropic shrinkage due to variable molecular chain lengths, ISMMOULD conducted deep-dive Moldflow analysis to map deformation vectors. Using these predictive models, engineers applied pre-deformation ("windage") adjustments to the CNC core machining paths, counter-curving the crate walls by 0.8mm so the molded parts cooled into perfect 90° perpendicularity.
2. Hot Runner Modifications & Pressure Balancing
To overcome high pressure drops caused by lower MFI recycled feedstocks, the hot runner manifold channels were expanded by 18% and polished to a mirror surface. Sequential Valve Gate (SVG) opening sequences were reprogrammed to eliminate cold weld-line formations along the crate's load-bearing lattice bottom.
3. Thermal Management via Beryllium Copper Inserts
Recycled polymers retain thermal energy longer due to thermal history degradation. ISMMOULD retrofitted Beryllium Copper (BeCu) alloy inserts into the deep core corners and base stacking rim area, accelerating thermal transfer and preventing corner warpage without increasing cooling line pressure.
Project Results and Operational ROI
The successful modification of the crate mold yielded immediate financial and environmental benefits for the client:
- Raw Material Cost Savings: Reduced resin procurement costs by 42% by replacing virgin PP with locally sourced 100% PCR PP regrind.
- Preserved Mechanical Performance: Certified top-load stacking strength met the rigorous 900 kg requirement across 30-day ISO creep tests.
- Zero Cycle Time Penalty: Maintained the target 38-second cycle time through optimized BeCu thermal management.
- Extended Tool Life: Nitrided DIN 1.2738 steel surfaces ensured tool durability for over 1,000,000 continuous shots.
