Corporate Brochure

Global Food Contact Material Certifications

Our moulds are designed to produce food-safe packaging that meets international regulatory standards.

FDA
🇺🇸 USA
Compliant with FDA 21 CFR 177.1520
EU 10/2011
🇪🇺 EU
Full compliance with EU plastic food contact regulations
LFGB
🇩🇪 Germany
German LFGB sensory testing passed
GB 4806
🇨🇳 China
China national food safety standard

Food Packaging Mould Product Matrix

Comprehensive mould solutions for the food and beverage packaging industry.

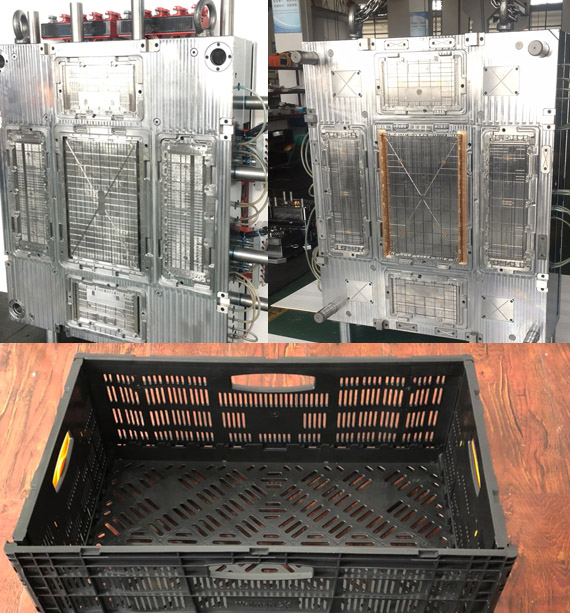

Fruit & Vegetable Crate Mould
Fresh Produce

Fruit & Vegetable Crate Mould

1-out-of-2 25s cycle PP / HDPE Large ventilation hole design for optimal air circulation

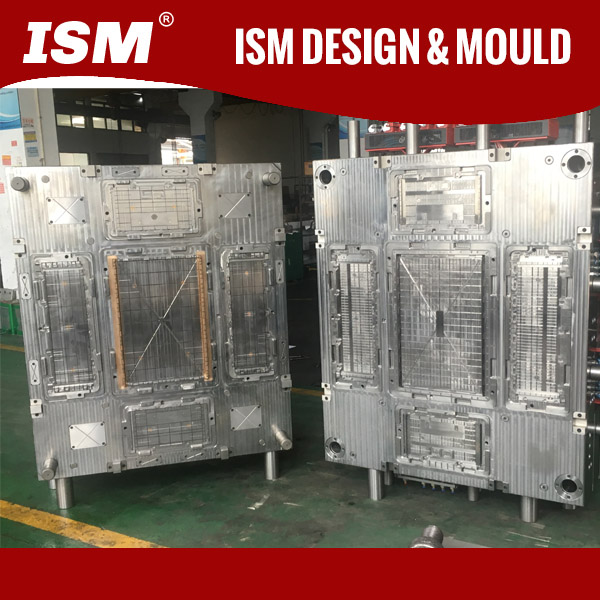

Folding Food Container Mould
Space Saving

Folding Food Container Mould

1-out-of-1 30s cycle PP / HDPE Hinge structure — one-shot molding, no assembly required

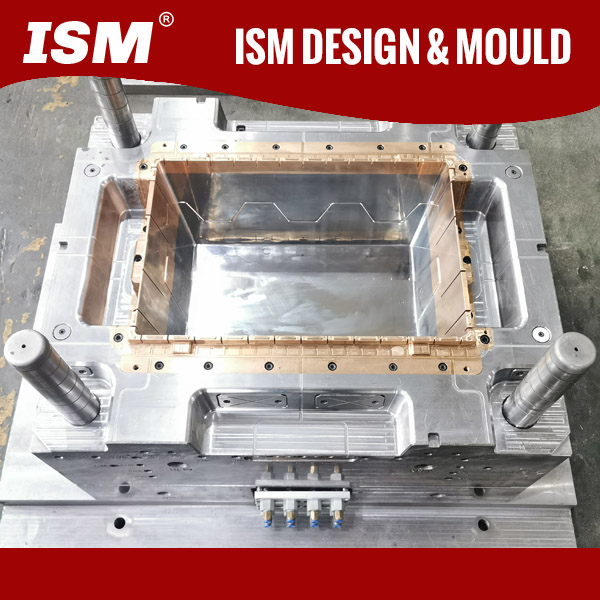

Deep-Freeze Box Mould
Cold Chain

Deep-Freeze Box Mould

1-out-of-2 35s cycle PP / HDPE Low-temperature design (-40°C), high impact resistance

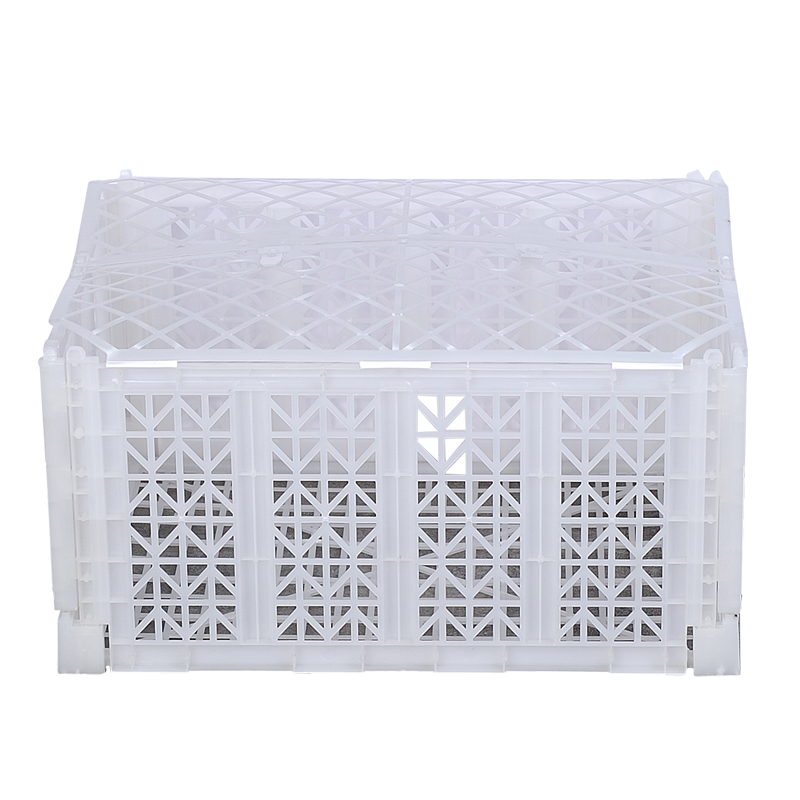

Food Tray & Clamshell Mould
Food Service

Food Tray & Clamshell Mould

1-out-of-4 / 1-out-of-8 6-8s cycle PP / PET Thin-wall, high-speed molding — compatible with robotic take-out

Thin-Wall Molding Technology Capabilities

Precision engineering for high-speed, lightweight food packaging production.

6-8s
Fastest Cycle Time
For thin-wall fruit baskets and food trays
±0.05mm
Wall Thickness Precision
Consistent quality across every shot
1-8
Cavity Options
1-out-of-1 to 1-out-of-8 for high efficiency
2M+
Mold Lifespan
With dual-hardness surface treatment

Food Packaging Challenges — Solved

We understand the real technical challenges in food packaging. Here's how we solve them.

Stress Cracking Around Ventilation Holes
Our solution: We add R-angle transitions around all ventilation holes during mould design, eliminating stress concentration points and preventing cracking during use.
Dimensional Instability from Temperature Fluctuations
Our solution: We apply Conformal Cooling technology to ensure uniform cavity temperature distribution, delivering consistent shrinkage and stable dimensions even in cold storage environments.
Machine Compatibility Issues
Our solution: We provide customized locating rings and sprue bushings to ensure your mould fits perfectly on Engel, Arburg, Husky, or any other brand machine — ready for production immediately.

Lightweight without Compromising Strength

Helping our customers save material costs through intelligent design optimization.

8-12%

Weight Reduction Achieved

Through topology optimization of rib structures at the bottom of trays and containers, we help customers reduce part weight while maintaining load-bearing capacity.

Cost savings: For 1 million parts per year, 8-12% weight reduction saves 20+ tons of raw material annually.
Lightweight design optimization

Original design vs. optimized rib structure

Free Trial Service

Trial Molding with Food-Grade Resin

We offer free trial molding — you specify the resin brand (e.g., LyondellBasell, Borealis), we purchase and run the trial, then send you 30 sample parts for:

  • Odor test — ensuring no food-safe contamination
  • Color consistency check — uniform throughout
  • Dimension report — precision measurement
Clean room trial molding
Isolated from dust and oil mist — contaminant-free samples

Contact ISM Mould – Get Your Food Packaging Mould Quote Today

Need a food-grade mould solution for your packaging application? Our team is ready to provide free technical consultation and tailored proposals. We typically respond within 2 hours during business days.

0086-13676642643 WhatsApp
