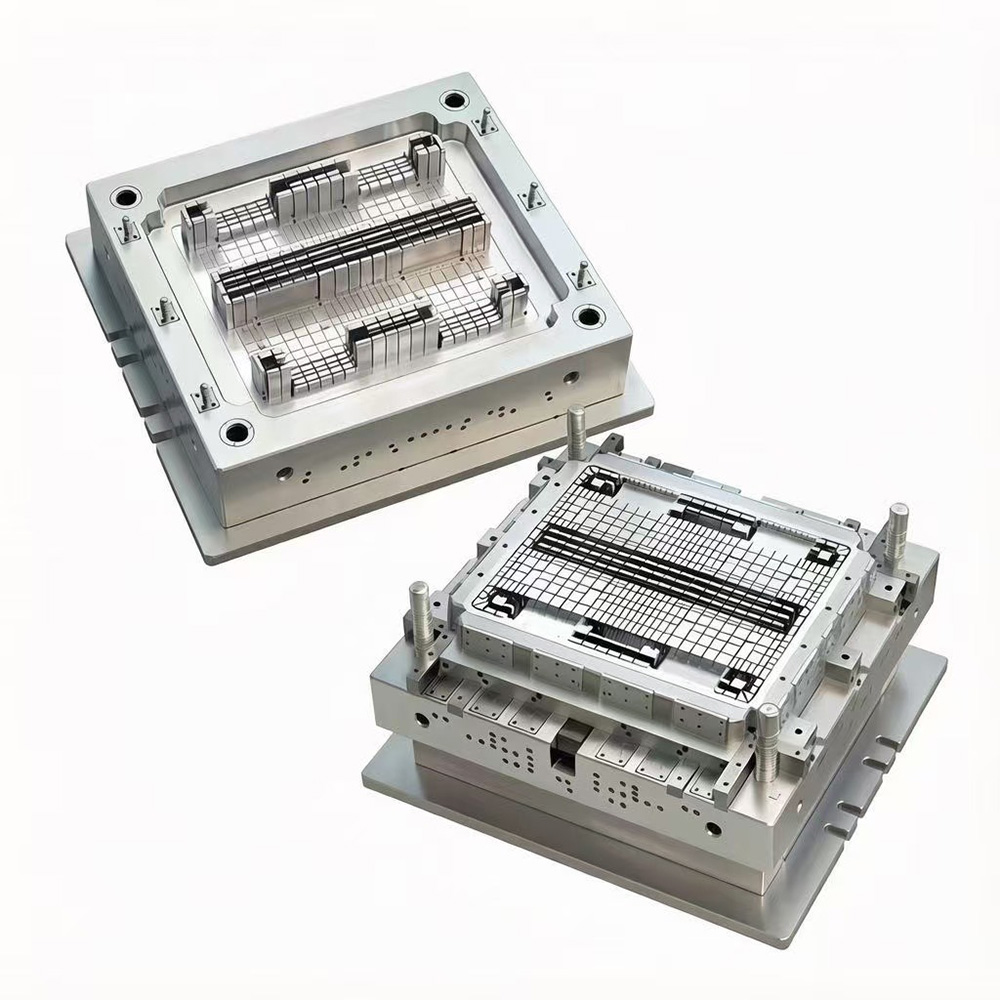

How Embedded Sensors and IoT Transform Large Crate and Pallet Molds into Smart Assets
Technical Whitepaper Published by ISMMOULD — Global Turnkey Solutions Authority for High-Performance Plastic Crate Molds, Pallet Molds, and Plastic Chair Molds
Executive Summary
In high-tonnage industrial injection molding—where capital equipment produces heavy-duty logistics pallets, agricultural crates, and ergonomic plastic chairs—unplanned downtime and quality fluctuations carry severe financial penalties. Traditional large-part tooling operates as a "black box," relying on external machine parameters rather than in-cavity physical realities to govern production quality.
Industry 4.0 digitizes this workflow. By directly embedding quartz piezo-electric pressure sensors, multi-point thermocouple arrays, vibration accelerometers, and IoT telemetry devices into mold cores, cavities, and hot runner manifolds, ISMMOULD transforms heavy mechanical tooling into self-monitoring, smart manufacturing assets. This technical guide examines how embedded sensors and IIoT architectures optimize cavity pressure switchovers, prevent tool damage, automate predictive maintenance, and stabilize batch-to-batch MFI variations in recycled plastics.
Technical Matrix: Standard Large-Part Tooling vs. ISMMOULD Sensor-Integrated Smart Assets
The comparative matrix below illustrates how embedded sensors and IoT integration elevate tooling performance across critical production vectors:
| Operational Vector | Conventional Large-Part Injection Tooling | ISMMOULD IoT-Enabled Smart Mold Asset |
|---|---|---|
| Process Control & V/P Switchover | Based on machine screw position or time; vulnerable to MFI drift, short shots, and flash. | In-cavity piezo-electric pressure transducers trigger real-time V/P switchover upon melt front arrival. |
| Thermal Dissipation Management | Monitored via external water thermolator return lines; localized hot spots remain undetected. | Embedded multi-zone thermocouples track real-time steel delta-T, dynamically regulating manifold flow loops. |
| Tool Protection & Asset Preservation | Reactive protection dependent on machine clamping resistance, leading to potential pin or slider crashes. | IoT strain gauges and linear position sensors detect slider misalignment or pin binding before full mold lockup. |
| Maintenance & Asset Tracking | Manual logbooks and scheduled calendar maintenance regardless of actual mechanical wear cycles. | Edge-computed cycle counter and vibration tracking trigger automated predictive maintenance alerts based on actual wear. |
Key Technologies Driving IoT Smart Mold Engineering
1. In-Cavity Piezo-Electric Pressure Monitoring
By flush-mounting piezo-electric pressure sensors behind ejector pins and near flow terminals in pallet decks and deep crate corners, ISMMOULD captures real-time melt pressure curves. Connected via edge-gateway controllers, the system automatically detects viscosity changes when running Post-Consumer Recycled (PCR) HDPE or PP. The closed-loop controller instantly compensates by adjusting packing pressure, guaranteeing zero sink marks in structural ribs and zero flash on parting lines.
2. Embedded Micro-Thermocouple Arrays & BeCu Thermal Balancing
Differential thermal expansion is the primary root cause of warpage in monoblock plastic chairs and stackable logistics crates. ISMMOULD combines high-thermal-conductivity Beryllium Copper (BeCu) core inserts with micro-thermocouple arrays embedded 2mm beneath cavity surfaces. Real-time thermal telemetry continuously feeds data to smart manifold units, ensuring uniform core-to-cavity cooling within ±1°C and reducing overall cooling cycle times by up to 18%.
3. IoT Telemetry, Cloud Asset Tracking & Edge Analytics
Every smart mold engineered by ISMMOULD is equipped with an integrated industrial IoT module. This compact unit logs total shot counts, peak cavity pressures, cycle times, vibration levels, and ambient storage conditions. Molds transmit data via secure cellular/MQTT protocols to central plant MES or cloud dashboards, allowing multinational OEMs to track asset utilization, audit tool health across global contract manufacturing sites, and schedule pre-emptive maintenance before steel-on-steel galling occurs.
Applications Across ISMMOULD Core Product Lines
ISMMOULD embeds custom IoT sensor packages across its specialized high-tonnage tooling portfolios:
- Plastic Crate Molds: Agricultural, beverage, and foldable crate tooling equipped with cavity pressure sensors and parting-line load cells to prevent flash during high-speed, continuous 24/7 manufacturing.
- Heavy-Duty Pallet Molds: High-tonnage single-deck, double-deck, rackable, and stackable pallet tools with multi-point pressure and thermal sensors to guarantee structural density across high-load foot columns and deck ribs.
- Plastic Chair Molds: Monoblock, gas-assisted, and armless chair molds incorporating real-time thermal monitoring and optical ejection verification to deliver flawless surface aesthetic finishes and warp-free seating ergonomics.
ISMMOULD: Your Global Expert for Intelligent Large-Part Tooling
At ISMMOULD, we bridge traditional master mold craftsmanship with Industry 4.0 digital intelligence. As a premier Chinese manufacturing factory specializing in plastic crate molds, pallet molds, and plastic chair molds, we help global logistics brands, OEMs, and container manufacturers increase OEE, eliminate defect scrap, and maximize capital equipment service life. From upfront DFM analysis and Moldflow rheology simulation to IoT-embedded 5-axis CNC precision machining, ISMMOULD delivers turnkey tooling built for the future of smart manufacturing.
