Lightweighting Plastic Chairs: Structural Design and Mold Engineering for Material Reduction
Technical Engineering Whitepaper Published by ISMMOULD — Global Turnkey Solutions Authority for High-Performance Plastic Crate Molds, Pallet Molds, and Plastic Chair Molds
Executive Summary
In the high-volume commercial seating industry, resin consumption accounts for up to 60–70% of total unit manufacturing costs. With fluctuating raw material prices for Polypropylene (PP) and increasing global carbon reduction mandates, achieving structural lightweighting is a paramount objective for furniture manufacturers. However, reducing part weight without strategic engineering introduces severe risks: structural flex fatigue under dynamic loads, premature leg buckling, visible sink marks at rib-to-wall intersections, and post-molding warpage.
Lightweighting plastic monoblock and armless chairs requires a synergistic approach combining Finite Element Analysis (FEA) structural design, gas-assisted injection channels, and ultra-precise mold thermal management. As an established global solution expert for plastic crate molds, pallet molds, and plastic chair molds, ISMMOULD presents this comprehensive technical whitepaper analyzing the structural design principles and tooling engineering strategies required to achieve up to 15–25% material reduction while strictly meeting EN 1728 and BIFMA structural strength standards.
Technical Matrix: Traditional Heavy Tooling vs. ISMMOULD Lightweighting Engineering
The matrix below compares traditional solid-wall plastic chair tooling with ISMMOULD's engineered lightweighting architecture:
| Tooling & Design Vector | Traditional Solid-Wall Chair Mold | ISMMOULD Lightweighted Tooling Architecture |
|---|---|---|
| Wall Thickness Optimization | Uniform thick walls (3.5mm – 4.5mm) to compensate for flex fatigue, resulting in excessive resin weight. | Variable wall topology (2.4mm – 3.0mm) combined with localized rib lattices and FEA-guided load paths. |
| Leg & Frame Internal Core | Solid plastic cross-sections subject to long cooling times, sink marks, and heavy unit mass. | Gas-Assisted Injection Molding (GAIM) hollow channels, forming structural tubular profiles inside legs. |
| Thermal Management & Cooling | Standard gun-drilled cooling circuits prone to thermal hot spots at thick seat-to-leg transitions. | High-conductivity Beryllium Copper (BeCu) core inserts paired with contoured cooling channels to slash cooling time by 20–30%. |
| Mold Steel & Core Rigidity | Standard P20 core steel prone to deflection under high injection packing pressures. | Pre-hardened German DIN 1.2738 / 718H tool steel with 4-Corner Taper Locks to maintain exact wall symmetry (< ±0.02mm). |
| Gate System & Surface Finish | Large direct sprue gate leaving unsightly vestige requiring manual trimming. | Subterranean pin gates or Sequential Valve Gates (SVG) positioned along invisible cosmetic lines for zero gate mark. |
Core Tooling and Structural Engineering Technologies
1. Finite Element Analysis (FEA) Topology & Rib Layout
Lightweighting begins in the digital design phase. ISMMOULD utilizes advanced FEA simulation software to map stress distribution vectors during static backrest drop tests and dynamic leg spread tests. By placing thin-walled gusset ribs (0.6:1 rib-to-wall ratio) precisely along primary stress lines and tapering non-load-bearing areas, material volume is stripped without compromising weight-bearing limits (testing up to 150 kg – 200 kg capacity).
2. Integrated Gas-Assisted Injection Molding (GAIM)
For chairs with hollow legs and armrests, ISMMOULD designs specialized gas-injection needle channels within the mold cavity. High-pressure nitrogen gas ($N_2$) is injected after polymer short-shot filling, hollowed out the center of thick leg cores. This hollow tubular structure drastically increases the strength-to-weight ratio, eliminates sink marks on outer visual surfaces, and cuts resin weight by up to 200–300 grams per chair.
3. Precision Cooling for Warpage Elimination
Reducing wall thickness makes the plastic part highly sensitive to cooling differentials. Uneven thermal dissipation causes backrest twisting and leg bowing. ISMMOULD incorporates high-thermal-conductivity Beryllium Copper (BeCu) alloy inserts across the deep core leg corners, seat corners, and backrest handles. This ensures rapid, uniform thermal transfer, maintaining perfectly straight legs and flat seating surfaces.
Application Across ISMMOULD Core Product Lines
ISMMOULD applies advanced lightweighting philosophy across its full spectrum of high-tonnage industrial tooling:
- Plastic Chair Molds: Precision monoblock, armless, rattan-texture, and gas-assisted chair molds engineered for fast cycle times, flawless cosmetic finishes, and low part weight.

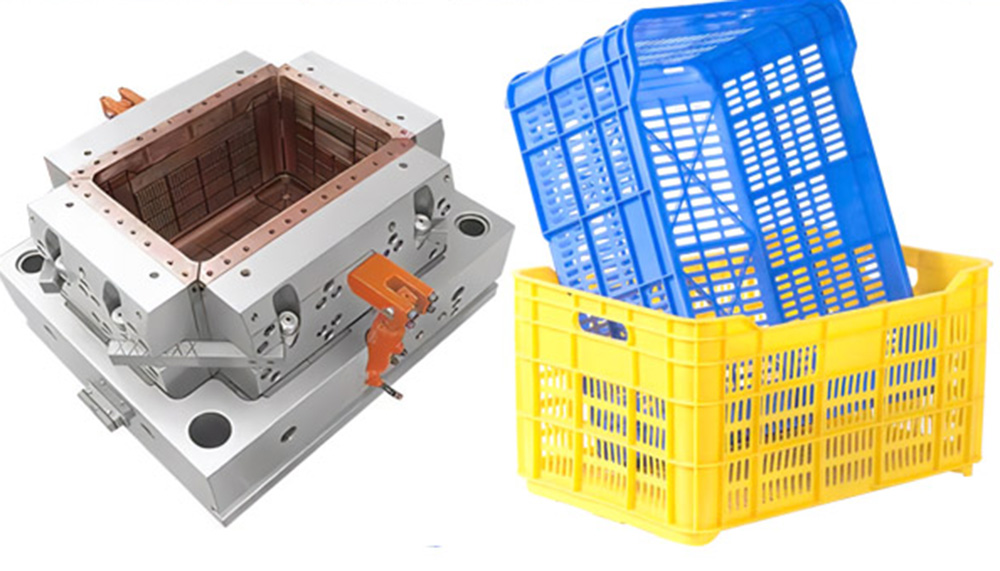

- Plastic Crate Molds: Optimized lattice-ribbed agricultural, beverage, and foldable crate molds that achieve maximum top-load stacking strength while reducing polypropylene resin consumption.
- Heavy-Duty Pallet Molds: High-tonnage rackable and stackable pallet molds designed with optimized cross-ribbing and optional gas channels to deliver high dynamic load capacity at minimal unit mass.
ISMMOULD: Your Engineering Authority for Plastic Tooling Solutions
At ISMMOULD, we bridge state-of-the-art CAD/CAE structural simulation with master mold-making precision. As a specialized Chinese manufacturer of plastic crate molds, pallet molds, and plastic chair molds, we help global furniture and packaging brands reduce resin costs, shrink carbon footprints, and maximize overall manufacturing profitability. Partner with ISMMOULD to build reliable, high-speed molds designed for millions of defect-free, lightweighted parts.
Optimize Your Plastic Chair and Container Tooling Today
Looking to lightweight your existing chair production lines or develop a new high-efficiency plastic crate or pallet mold? Contact the technical engineering team at ISMMOULD today for comprehensive DFM evaluations, FEA load simulations, and custom project quotations.
