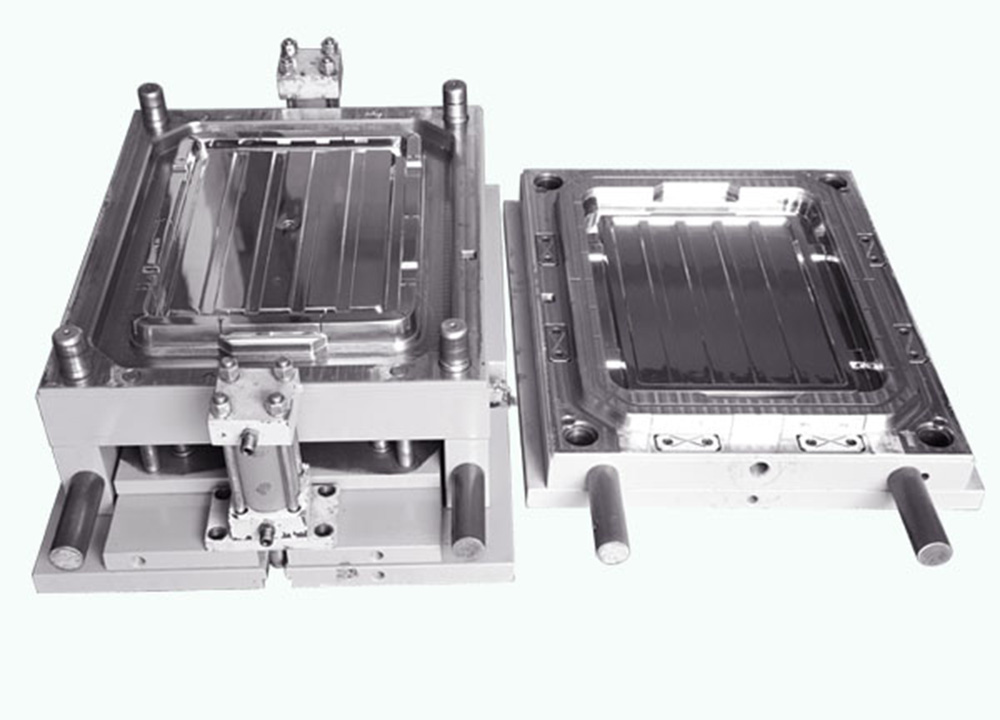

From Reactive to Predictive: Smart Sensors in Crate and Pallet Molds
Technical Engineering Whitepaper Published by ISMMOULD — Global Turnkey Solutions Authority for High-Performance Plastic Crate Molds, Pallet Molds, and Plastic Chair Molds
Executive Summary
In high-tonnage industrial injection molding—such as manufacturing heavy-duty plastic pallets, agricultural crates, and monoblock plastic chairs—traditional quality control has historically been reactive. Quality teams typically inspect finished components after defects like warpage, short shots, or surface sink marks have already occurred, resulting in significant material waste and machine downtime.
Industry 4.0 smart sensor technology shifts this paradigm from reactive troubleshooting to predictive quality assurance. By embedding micro-cavity pressure transducers, dynamic infrared thermal sensors, and optical ejection monitors directly into mold core and cavity blocks, ISMMOULD equips global manufacturers with real-time tooling intelligence. This whitepaper analyzes how smart sensor integration stabilizes processing windows, prevents catastrophic tool damage, and optimizes Overall Equipment Effectiveness (OEE) in large-part injection molding.
Technical Matrix: Reactive Tooling Management vs. ISMMOULD Predictive Smart Systems
The table below contrasts conventional large-part tooling operation with ISMMOULD's predictive sensor-integrated tooling architecture:
| Tooling Vector | Traditional Reactive Tooling Operation | ISMMOULD Predictive Smart Sensor Architecture |
|---|---|---|
| Viscosity & MFI Drift | Batch-to-batch polymer variations lead to unexpected short shots or flash, requiring manual operator adjustment. | In-cavity pressure transducers detect fluid front arrival in real time, triggering automatic V/P switchover adjustments. |
| Gate Synchronization | Fixed hydraulic timer gates lead to weld-line shifts and structural weak points during melt temperature fluctuations. | Closed-loop feedback dynamically modulates Sequential Valve Gate (SVG) pins to ensure continuous, seamless melt fronts. |
| Thermal Management | Localized hot spots in deep rib cores go unnoticed until post-molding warpage affects part dimensions. | Multi-zone embedded thermocouples monitor thermal dissipation curves, dynamically adjusting circuit water flow rates. |
| Tool Protection & Ejection | Un-ejected parts or stuck pins cause core crash damage, costing thousands in steel repair and downtime. | Optical vision sensors verify complete part drop and clean pin retraction within milliseconds before mold closure. |
Core Predictive Technologies Embedded in ISMMOULD Tooling
1. In-Cavity Piezo-Electric Pressure Transducers
By placing high-precision piezo-electric pressure sensors behind key ejector pins and along flow terminals, ISMMOULD generates a real-time digital pressure profile for every shot. Machine controllers analyze this curve to instantly balance holding pressure, eliminating sink marks in thick crate corners and internal voids in heavy pallet feet.
2. Dynamic Thermal Profiling with Beryllium Copper (BeCu) Inserts
Differential thermal stress is the primary cause of dimensional twisting in monoblock plastic chairs and large pallet decks. ISMMOULD combines high-conductivity Beryllium Copper (BeCu) core inserts with multi-point temperature sensors. Real-time temperature feedback maintains strict core/cavity thermal balance within ±1°C, significantly shortening cooling cycles while preserving structural flatness.
3. Predictive Maintenance Algorithms for High-Wear Components
Embedded cycle counters, strain gauges, and vibration sensors monitor mechanical stress across Four-Corner Taper Locks, slider mechanisms, and ejector plates. By tracking cumulative mechanical wear, the predictive system alerts maintenance teams to lubricate or inspect high-wear zones before steel-on-steel galling or pin breakage occurs.
Applications Across ISMMOULD Core Product Lines
ISMMOULD integrates predictive smart technology across its primary high-tonnage tooling sectors:
- Plastic Crate Molds: Precision agricultural, beverage, and foldable crate tooling equipped with cavity pressure sensors to prevent wall flashing and maintain stackability tolerances.
- Heavy-Duty Pallet Molds: Multi-drop SVG hot runner pallet tools with real-time pressure-curve monitoring to ensure uniform density across deck ribs and high-load foot columns.
- Plastic Chair Molds: Monoblock, armless, and gas-assisted chair molds incorporating thermal profiling and optical drop verification to deliver warp-free ergonomic seating and flawless aesthetic finishes.
ISMMOULD: Your Engineering Authority for Smart Injection Tooling
At ISMMOULD, we lead the industry by combining master mold-making craftsmanship with cutting-edge digital intelligence. As a premier Chinese manufacturer specializing in plastic crate molds, pallet molds, and plastic chair molds, we help global brands transition to automated, zero-defect Industry 4.0 production. From initial DFM analysis and Moldflow simulation to sensor-embedded precision CNC machining, ISMMOULD provides turnkey solutions engineered for optimal OEE and long service life.
Upgrade Your Injection Tooling to Predictive Intelligence
Ready to integrate smart sensor technology into your large-part plastic container, pallet, or chair manufacturing lines? Contact the technical engineering team at ISMMOULD today for detailed DFM consultations, sensor integration plans, and custom project quotations.
